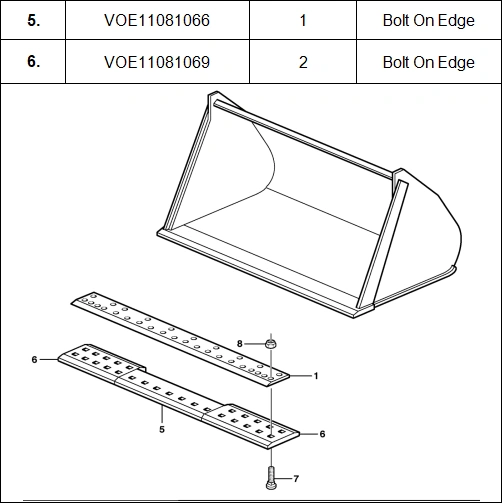

Product Specifications – VOLVO L150 Cutting Edge Kit VOE11081066 / VOE11081069
| Item | Specification |
|---|---|
| Part Numbers | VOE11081066 / VOE11081069 |
| Application | Volvo L150 Series Loaders |
| Position | End (corner) |
| Blade Type | Double beveled reversible bucket end cutting edge |
| Length | 34 inches |
| Width | 19 inches |
| Thickness | 1.25 inches |
| Bolt Quantity | 7 plow bolts + 7 hex nuts (included) |
| Bolt Size | 1″ x 3-1/2″ (100 x 350) plow bolt / 1″ hex nut (100 HEX NUT) |
| Bolt Hole Spacing | 5 inches center to center (first 2 holes) |
| Edge to First Hole | 4.5 inches from bucket edge to center of first hole |
| Weld Cladding | Applicable |
Heavy-Duty Dimensions for Superior Bucket Corner Protection
The VOLVO L150 Cutting Edge Kit VOE11081066 / VOE11081069 features a robust double beveled reversible end blade designed specifically for the L150 series Volvo loaders. With a substantial thickness of 1.25 inches, width of 19 inches, and length of 34 inches, this end cutting edge provides exceptional protection for bucket corners—the areas most susceptible to impact and abrasion during aggressive loading operations. The double bevel geometry allows operators to flip the edge once the primary cutting face becomes worn, effectively doubling the service life of the component. The heat-treated alloy steel construction ensures consistent hardness throughout the cross-section, resisting deformation even when handling shot rock, demolition debris, and other highly abrasive materials encountered in quarry and mining applications.
Complete Hardware Kit for Quick Installation
This cutting edge kit includes all necessary mounting components for a hassle-free installation. The end blade features 7 precisely spaced bolt holes with a uniform spacing of 5 inches from center to center between the first two holes, and a 4.5-inch measurement from the bucket edge to the center of the first hole—specifications that match Volvo OEM standards exactly. The kit includes 7 pieces of 1″ x 3-1/2″ plow bolts and 7 pieces of 1″ hex nuts, eliminating the need for separate hardware orders. For optimal performance, clean the bucket mounting surface thoroughly before installation, apply anti-seize compound to bolt threads, and torque all fasteners evenly in a cross pattern. The reversible design means that when one bevel is worn, you can simply flip the edge and reinstall using the same hardware.
Frequently Asked Questions About VOLVO VOE11081066 / VOE11081069 Kit
What are the blade dimensions? 34 inches (length) × 19 inches (width) × 1.25 inches (thickness).
Is this a center or end cutting edge? This is an end (corner) cutting edge for bucket corners.
How many bolts are included? 7 plow bolts (1″ x 3-1/2″) and 7 hex nuts (1″).
What is the bolt hole spacing? 5 inches center to center; 4.5 inches from bucket edge to first hole.
Is this reversible? Yes, double beveled design allows flipping when one edge dulls.
Which Volvo models are compatible? Designed for Volvo L150 series loaders.
Can weld cladding be applied? Yes, weld buildup is applicable for additional wear protection
