CASE 320E Heavy Duty Cutting Edge KV12758

CASE 320E Heavy Duty Cutting Edge KV12758 Specifications:

Item	Specification
Part Number	KV12758
Application	CASE 320E 319E 318E 323E 326E 328E 329E 332E 33E Skid steer loader
Blade Type	Heavy-duty straight edge
Length	78 inches
Width	6 inches
Height / Thickness	0.7 inch
Weight	76 lb
Material	High-strength heat-treated alloy steel
Edge Profile	Straight
Installation	Bolt-on, direct fit

Heavy-Duty Construction for Demanding Loading Conditions

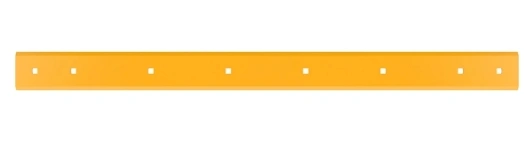

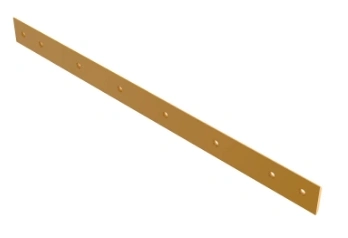

The CASE 319E Heavy Duty Cutting Edge KV12758 is built from high-strength heat-treated alloy steel. It features a robust straight edge design for consistent bucket protection. The blade measures 78 inches in length, 6 inches in width, and 0.7 inch in thickness. Additionally, it weighs 76 pounds, which reflects its solid construction. Consequently, this cutting edge withstands heavy loading cycles in construction, landscaping, and material handling applications. The heat treatment ensures uniform hardness across the entire blade surface. Therefore, it resists abrasion from gravel, sand, asphalt, and demolition debris. The straight edge profile promotes even wear distribution, which extends service intervals significantly. Furthermore, the 6-inch width provides adequate coverage for standard loader buckets.

H2 Simple Installation with Direct Bolt-On Fit

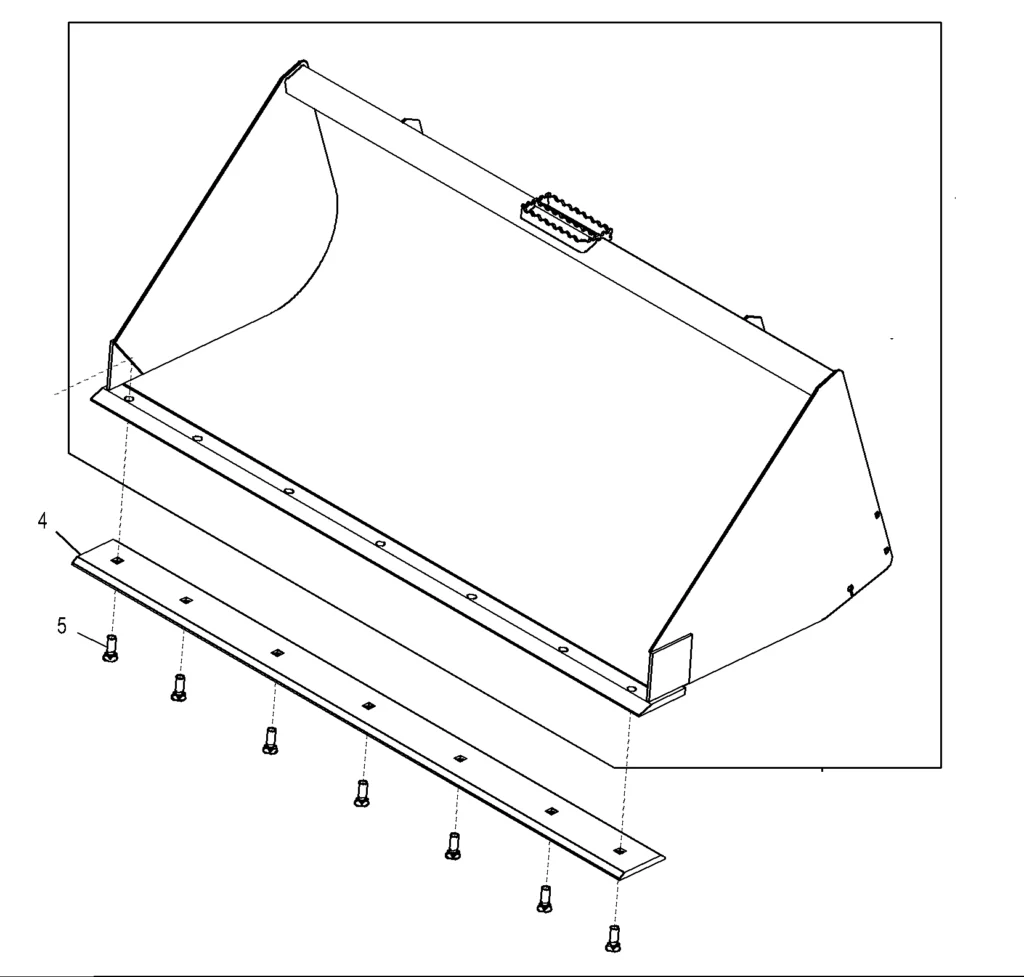

The CASE 319E Heavy Duty Cutting Edge KV12758 attaches securely using standard plow bolts. The bolt hole pattern matches CASE OEM specifications exactly, so no modification is required. For best results, clean the bucket mounting surface thoroughly before installation. Then, align the blade with the existing holes and insert the appropriate bolts. Finally, torque all fasteners evenly in a crossing pattern to ensure uniform clamping pressure. The heavy-duty construction means this edge holds up well under repeated impact loads. Additionally, regular inspection of bolt tightness helps prevent premature wear or loosening during operation. When the edge becomes worn, simply replace it with a new KV12758 blade.

H2 Frequently Asked Questions About CASE KV12758 Cutting Edge

What are the blade dimensions? 78 inches long, 6 inches wide, and 0.7 inch thick.
What does the blade weigh? 76 pounds.
What blade type is this? Heavy-duty straight edge design.
Which CASE model is this compatible with? Designed for CASE 319E and related compact loaders.
What material is used? High-strength heat-treated alloy steel.
Can weld cladding be applied? Yes, weld buildup works well for extra wear protection.
Is installation difficult? No. The bolt-on design makes replacement quick and easy.
