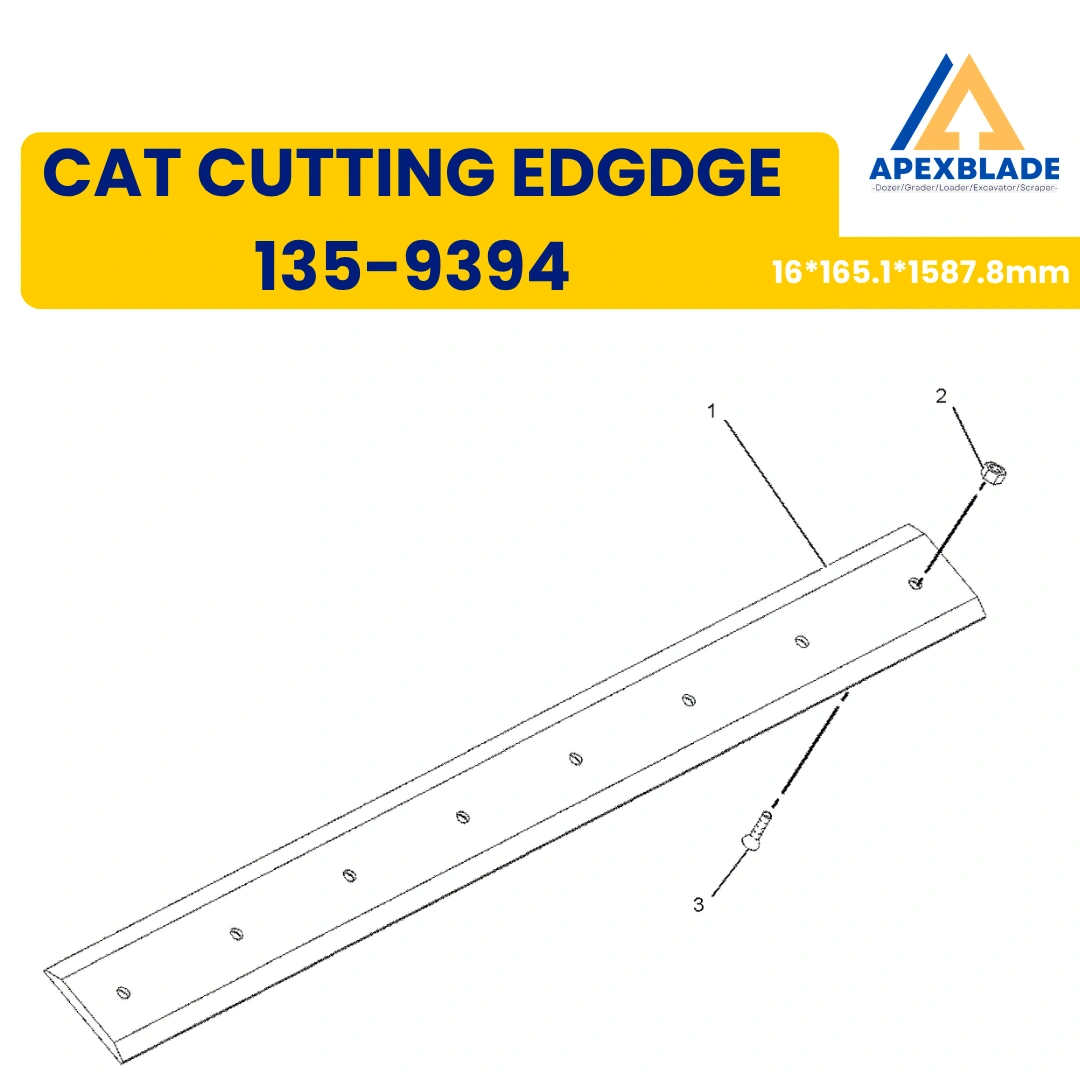

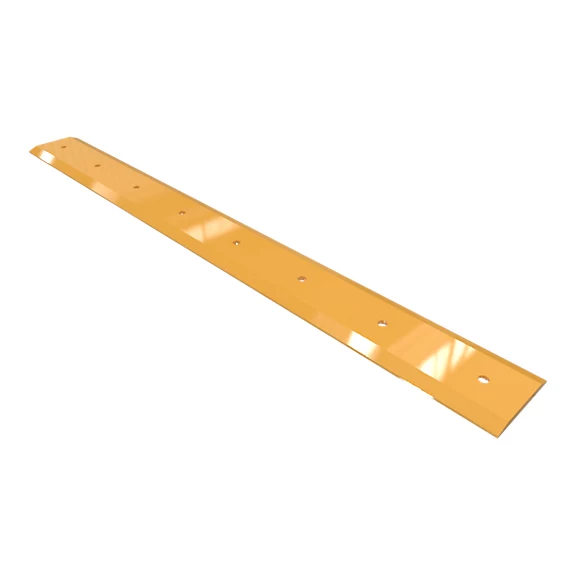

Product Information– CAT Cutting Edge 135-9394
| Specification | |
|---|---|
| Part Number | 135-9394 |
| Application | Skid Steer Loaders / Compact Track Loaders / Compact Wheel Loaders |
| Position | Center |
| Shape | Continuous straight edge |
| Material | Boron Steel |
| Length | 62.44 inches (Edge Length: 62.441 inches) |
| Width | 6.496 inches |
| Height | 6.5 inches |
| Thickness | 0.63 inches |

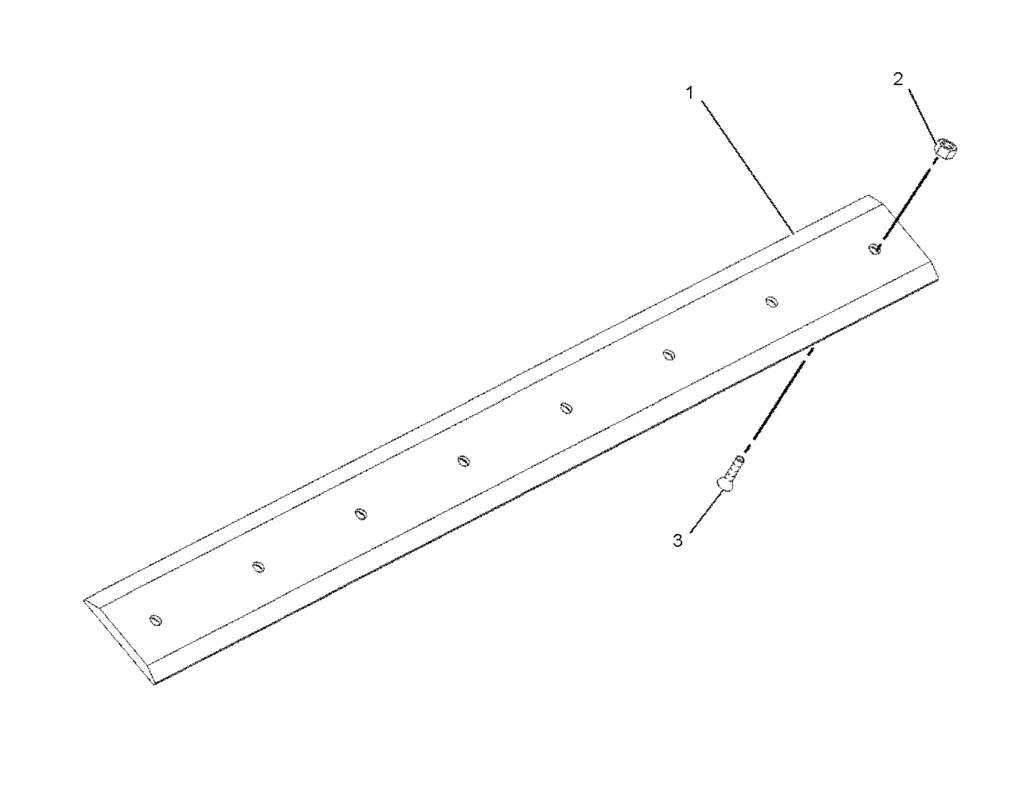

| Hole Quantity | 8 |
| Hole Size | 5/8″ plow bolt (18mm square) |
| Hole Spacing | 8.11 inches center to center |
| End 1 Hole Offset | 2.835 inches |
| End 2 Hole Offset | 2.835 inches |
| End Shape 1 & 2 | Straight |
| Attachment Method | Bolt-On |
| Wear Rating | Standard durability |
Boron Steel Construction for Standard-Duty Applications
The CAT Cutting Edge GP 135-9394 is manufactured from high-strength boron steel, offering reliable wear resistance for standard-duty loading and grading operations. With a thickness of 0.63 inches and width of 6.496 inches, this center blade provides dependable protection for bucket edges in light to medium applications. The 62.44-inch continuous straight edge design ensures consistent material engagement, making it suitable for general-purpose tasks including site cleanup, material handling, and light grading. The bolt-on attachment method with 8 mounting holes allows for straightforward installation, minimizing machine downtime when replacement becomes necessary.
Compatible Equipment Models – CAT Cutting Edge GP 135-9394
| Equipment Type | Compatible Models |
|---|---|
| Skid Steer Loaders | 216, 216B, 216B3, 226, 226B, 226B3, 226D, 228, 232, 232B, 232D, 232D3, 236, 236B, 236B3, 236D, 236D3, 242, 242B, 242B3, 242D, 242D3, 246, 246B, 246C, 246D, 246D3, 248, 248B, 250, 252, 252B, 252B3, 256C, 260, 262, 262B, 262D, 262D3, 268B, 270, 270XE, 272C, 272D, 272D XHP, 272D3, 272D3 XE |
| Compact Track Loaders | 239D3, 249D, 249D3, 255, 257, 257B, 257B3, 257D, 257D3, 259B3, 259D, 259D3, 265, 267, 267B, 275, 275XE, 277, 277B, 277C, 277C2, 277D, 279C, 279C2, 279D3, 285, 285XE, 287, 287C, 287C2, 289C, 289C2, 289D, 289D3, 297C, 297D, 297D XHP, 297D2, 297D3, 299C, 299D, 299D2, 299D2 XHP, 299D3, 299D3 XE |
| Compact Wheel Loaders | 904B, 904H |
| Wheel Loaders | 906, 907, 908 |
| Multi Terrain Loaders | 247, 247B3, 257, 257B, 257B3, 257D, 257D3, 267, 267B, 277, 277B, 277C, 277C2, 277D, 287, 287C, 287C2, 297C, 297D, 297D XHP, 297D2, 297D3 |
| Sweepers / Attachments | BP15, BP115, BU115 |
Simple Installation and Maintenance Tips for Long Service Life
Installing the CAT Cutting Edge GP 135-9394 requires no specialized tools or modifications. The 8 bolt holes are sized for standard 5/8-inch plow bolts (18mm square shank), with uniform spacing of 8.11 inches between holes. Both ends feature identical hole offsets of 2.835 inches, simplifying alignment during installation. For optimal performance, inspect mounting bolts regularly and retorque to manufacturer specifications after the first few hours of operation. When wear reaches approximately 40% of the original thickness, consider replacement to prevent bucket damage. The straight end shape on both sides ensures symmetrical wear distribution, extending overall service intervals.
