John Deer 350B Dozer Cutting Edge U16748

Product Details – John Deere 350B Dozer Cutting Edge U16748

Parameter	Specification
Part Number	U16748
Application	Bulldozer / Crawler Loader / Skid-Steer / Skidder / Articulated Truck
Blade Type	Double beveled reversible center cutting edge
Length	65.88 inches
Width	6 inches
Thickness	0.625 inch
Bolt Quantity	7 plow bolts + 7 hex nuts (included)
Bolt Size	3/4″ x 2-1/4″ (750 x 225) plow bolt / 3/4″ hex nut (750 HEX NUT)
Bolt Hole Spacing	6 inches center to center
Edge to First Hole	2.938 inches from equipment edge to center of first hole
Weld Cladding	Applicable
Installation	Bolt-on, no modification needed

Compatible Equipment Models – John Deere U16748 Cutting Edge

Equipment Type	Compatible Models
Bulldozer	350C, 350D, 400G, 450D, 450E, 6400, 6405, Deere
Crawler Loader	350B, 450C
Skid-Steer Loader	318E, 320E, 4475, 8875
Skid-Steer Attachment	AF66
Log Skidder	550
Articulated Dump Truck	350C, 350D, Deere

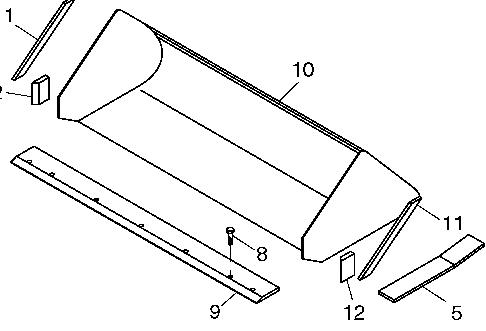

Straightforward Installation with Complete Hardware
This cutting edge kit includes all necessary mounting components. The blade has 7 bolt holes with precise spacing of 6 inches from center to center between the first two holes. Additionally, the first hole sits 2.938 inches from the edge of the bucket or blade surface. These measurements match John Deere OEM specifications exactly. The kit includes 7 pieces of 3/4″ x 2-1/4″ plow bolts and 7 pieces of 3/4″ hex nuts. For optimal results, clean the mounting surface thoroughly before installation. Then, apply anti-seize compound to the bolt threads. Finally, torque all bolts evenly in a crossing pattern to ensure uniform pressure distribution. When the first bevel wears out, flip the edge and reuse the same hardware. Consequently, downtime stays minimal and productivity remains high.

Frequently Asked Questions About John Deere U16748 Cutting Edge
What are the blade dimensions? 65.88 inches long, 6 inches wide, and 0.625 inch thick.
What blade type is this? Double beveled reversible center cutting edge.
How many bolts are included? 7 plow bolts (3/4″ x 2-1/4″) and 7 hex nuts (3/4″).
What is the bolt hole spacing? 6 inches center to center; 2.938 inches from edge to first hole.
Can I flip this blade? Yes. The double bevel design allows reversal when one side wears.
Is weld cladding applicable? Yes, weld buildup works well for extra wear protection.
