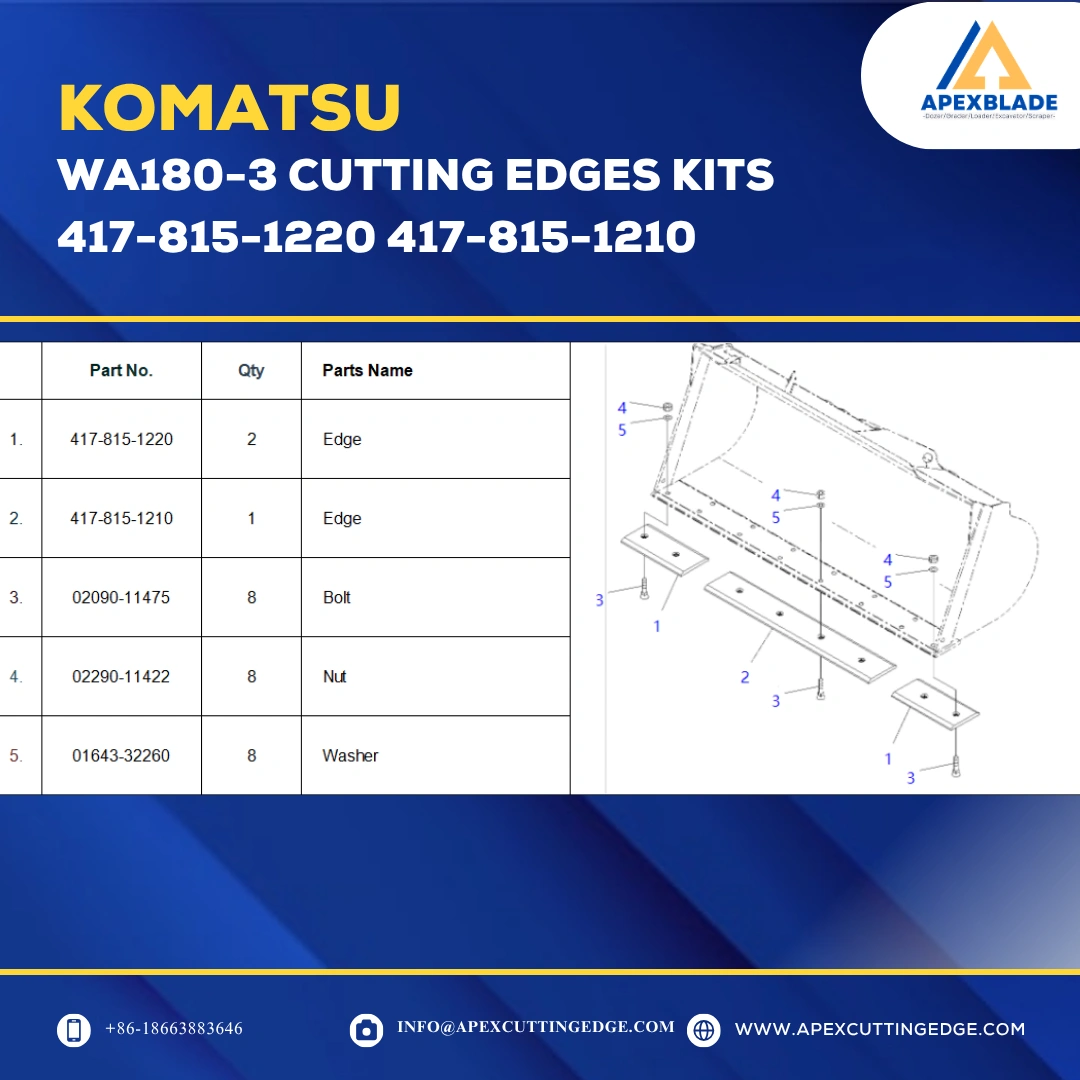

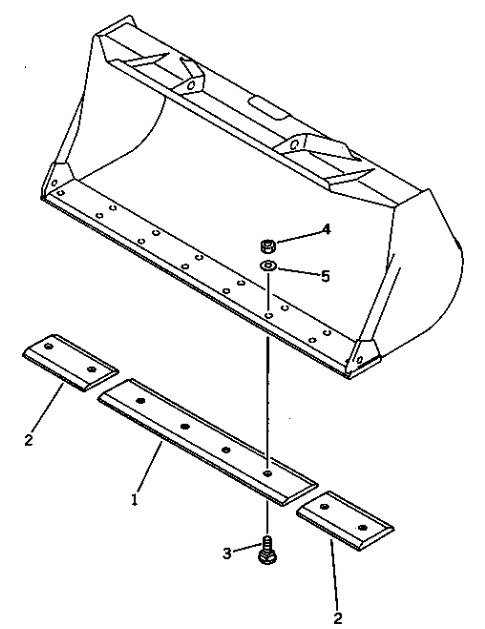

Komatsu WA180-3 Loader Cutting Edge Kit, includes Middle cutting edge 417-815-1210, end cutting edge 417-815-1220, bolts 02090-11475, nuts 02290-11422 and washer 01643-32260.
1. Product Introduction: Komatsu WA180-3 Loader Cutting Edge Kit
| Parameter | Specification |
|---|---|
| Part Number | 417-815-1210/417-815-1220 |
| Application | Komatsu WA180-3 wheel Loader |
| Position | Center and End |
| Edge Type | Double beveled reversible bucket cutting edge |
| Material | MnB (Heat treated) |
| Length | 53.562 inches |
| Width | 10 inches |
| Thickness | 1 inch |
| Bolt Quantity | 4 plow bolts + 4 hex nuts (included) |
| Bolt Size | 7/8″ x 3″ (875 x 300) plow bolt / 7/8″ hex nut (875 HEX NUT) |
| Bolt Hole Spacing | 13.438 inches center to center |
| Edge to First Hole | 6.625 inches from bucket edge to center of first hole |
| Installation | Bolt-on, no modification required |
2. Reversible Design and Heat Treatment for Extended Service Life
The Komatsu WA180-3 Loader Cutting Edge Kit 417-815-1210 features a double beveled reversible design that effectively doubles the usable life of the blade. Manufactured from high-strength alloy steel and subjected to a rigorous quenching and tempering process, this 1-inch thick center cutting edge achieves optimal hardness to resist abrasion while maintaining core toughness to absorb heavy impact loads during front-end loading operations. The 53.562-inch length and 10-inch width provide substantial bucket protection, while the reversible bevels allow operators to simply flip the edge when the primary cutting face becomes worn, minimizing downtime and replacement costs. The heat-treated surface maintains its profile even when handling abrasive materials such as crushed rock, demolition debris, and compacted aggregates.
3. Straightforward Installation with Complete Hardware Kit
This Komatsu WA180-3 cutting edge kit includes all necessary mounting hardware for a hassle-free installation. The center blade features 4 bolt holes with uniform spacing of 13.438 inches from center to center, with the first hole positioned 6.625 inches from the bucket edge – dimensions that match Komatsu OEM specifications precisely. The kit includes 4 pieces of 7/8″ x 3″ plow bolts and 4 pieces of 7/8″ hex nuts, eliminating the need for separate hardware orders. Installation requires no modification to existing buckets; simply align the blade with the mounting holes, insert the included plow bolts, and torque to manufacturer specifications for secure attachment.
4. Suitable Komatsu Equipment:
| Wheel Loader | |||||
| WA200-6 | WA250PZ-6 | WA200PZ-6 | WA270-7 | 518 | WA180-3 |
| WA180-1 | WA180-1LC | WA180-3L | WA180-3MC | WA180PT-3L | WA180L-3 |
| WA180PT-3MC | WA200-3-X | WA200-1 | WA200-5L | WA200-3 | WA200-3-SN |
| WA200-5 | WA200-5-SN | WA200-5-SS | WA200L-5 | WA200PT-5 | WA200PTL-5 |
Need more information about the Komatsu loader cutting edge, contact us freely!
