Komatsu WA600-1 Cutting Edges Kits
The Komatsu WA600-1 cutting edges kits includes center edge 426-8115-1110, side edge 426-815-1120, end edge 426-815-1130=-1519 and bolts, nuts, washers.

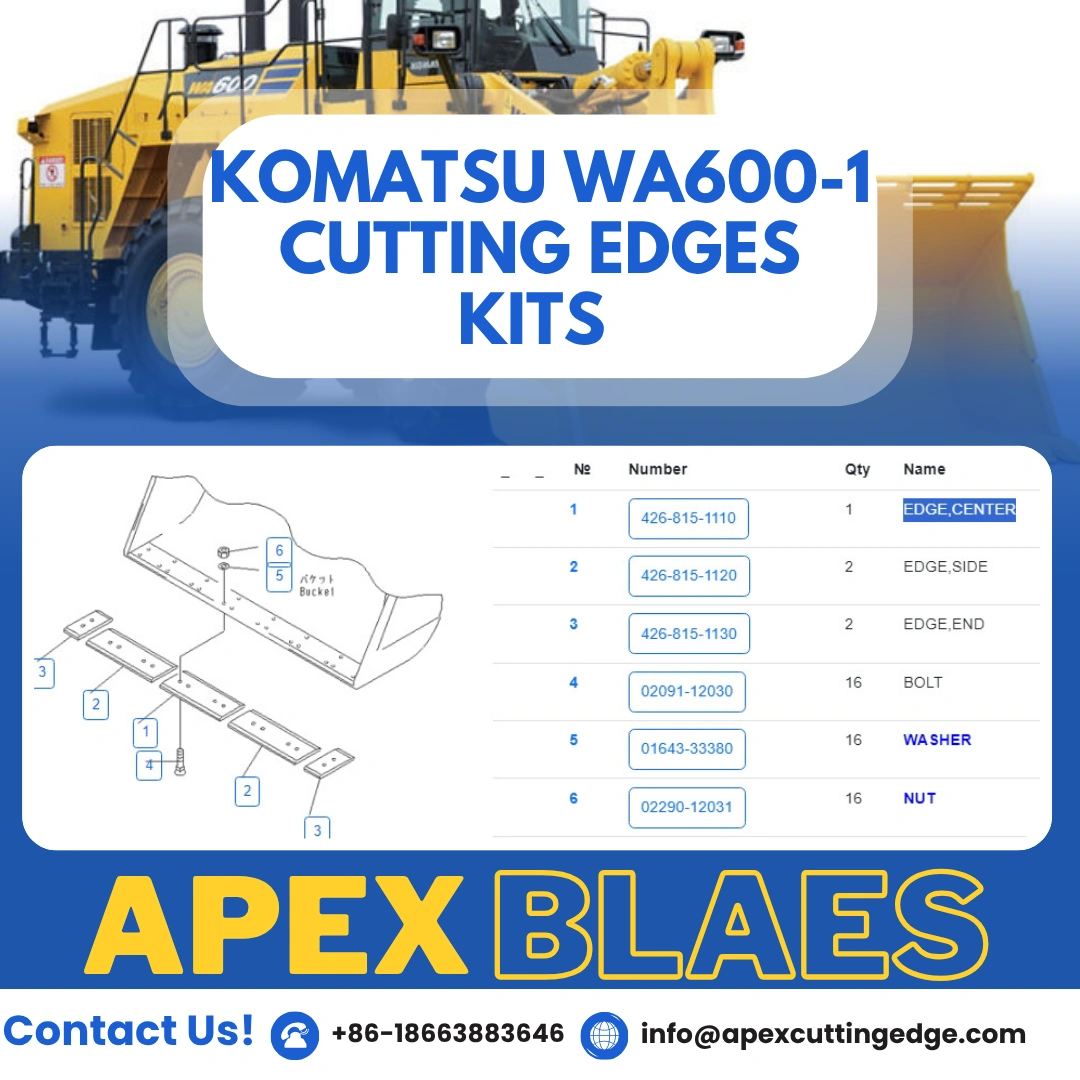

The details diagram as follows,
1. Basic Specification for Komatsu WA600 Cutting Edges Kits
| Part Number | 426-815-1110 426-815-1120 426-815-1130 |
| Install type | Bolt |
| Bolt holes | 16 holes |
| Width | 34.38″ 47.19″ 7.88″ |
| Payment | T/T, L/C or as your requirements |
| Type | G.E.T |
2. Komatsu WA600 Cutting Edges Details:
-426-815-A110 is the latest Part No. for 426-815-1110.This is a reversible center blade for the bucket. It has a double bevel and measures, thickness is1.5 inches, wide is 16 inches, and length is 34.38 inches. It uses four 1¼” x 5½” plow bolts and four 1¼” hex nuts.
The distance between the centers of the first two bolt holes is 3.94 inches. From the edge of the bucket cutting edge to the center of the first hole is 5 inches.
-426-815-A120 is the latest Part No. for 426-815-1120, and wa600 bucket middle cutting edge. The length is 47.19 inches.
-426-815-A120 is the latest Part No. for 426-815-1120, and it is end cutting edge. The length is 7.88 inches.
3.Packaging Details:

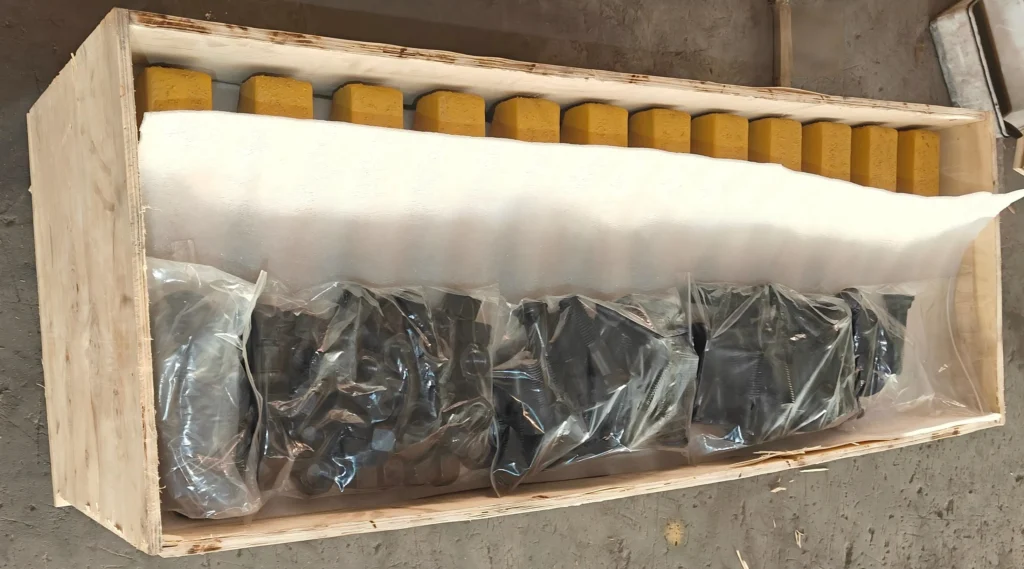

Standard Package: the 1pc Komatsu 426-815-1110, 2pcs 426-815-1120, and 2pcs 426-815-1130 cutting edges with bolt, nuts and washers are packed in one plywood case.
We can accept custom packaging. Forexample, we can print or write information on the packaging as you need.
