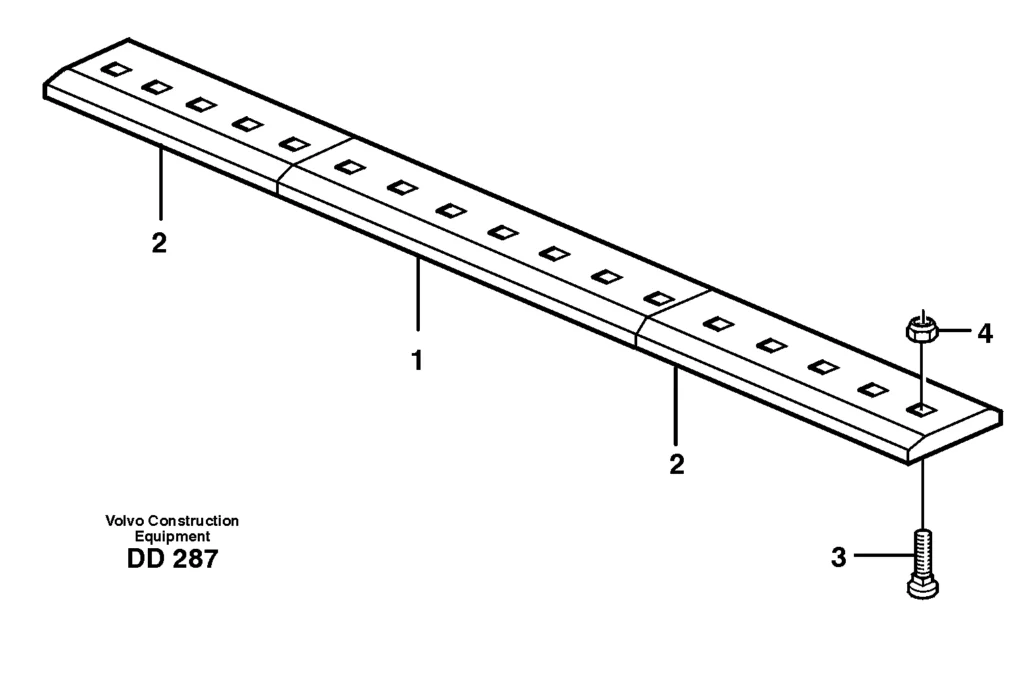

1. Product Specifications – Volvo L110 Loader Cutting Edge 11156765
| Parameter | Specification |
|---|---|
| Part Number | 11156765 |
| Application | Volvo L110 Series Loaders |
| Product Type | Cutting Edges |
| Blade Type | Double Bevel |
| Length | 25.75 inches |
| Width | 18.25 inches |
| Thickness | 1 inch |
| Bolt Diameter | 0.75 inch |
| Bolt 1 Length | 3.5 inches |
| Bolt 1 Quantity | 4 bolts |
| Hole 1 Quantity | 8 holes |
| Hole 1 Distance End to 1st Hole | 5.25 inches |
| Hole 1 Distance 1st to 2nd Hole | 4.5 inches |
| Hole 2 Distance 1st to 2nd Hole | 4.75 inches |
| Hole 2 Distance 2nd to 3rd Hole | 6 inches |
| Machine Type | Loader |
2. Optimized Double Bevel Design for Efficient Material Penetration
The Volvo L110 Loader Cutting Edge 11156765 features a double bevel profile that enhances bucket penetration and material flow during loading operations. This 1-inch thick, 18.25-inch wide blade is engineered specifically for the L110 series loaders, providing robust protection for the bucket cutting edge against abrasive wear from crushed stone, gravel, and demolition debris. The substantial width offers excellent surface coverage, while the beveled geometry reduces resistance during digging cycles, contributing to improved fuel efficiency and cycle times. The 25.75-inch length makes this cutting edge particularly suitable for bucket corners or center positions where wear concentration is highest.
3. Complete Bolt Kit for Hassle-Free Installation
This Volvo L110 cutting edge comes complete with all necessary mounting hardware for immediate installation. The blade features two distinct bolt hole configurations: 8 holes accepting bolts with a 0.75-inch diameter, and an additional 4 holes for bolts measuring 3.5 inches in length. The hole spacing is precisely engineered with the first hole positioned 5.25 inches from the end, followed by 4.5-inch spacing between the first and second holes, 4.75 inches between the second and third, and 6 inches between the third and subsequent holes. This carefully calculated pattern matches Volvo OEM specifications, ensuring proper alignment and secure attachment without any modification to the existing bucket mounting structure.
4. Frequently Asked Questions About Volvo 11156765 Cutting Edge
What are the blade dimensions? 25.75 inches (length) × 18.25 inches (width) × 1 inch (thickness).
What blade type is this? Double bevel design for efficient material penetration.
Which Volvo models are compatible? Designed specifically for Volvo L110 series loaders.
How many bolt holes are there? 8 standard holes plus 4 additional holes for 3.5-inch bolts.
What is the bolt diameter? 0.75-inch diameter bolts are required.
Is this a straight or curved blade? Straight double bevel blade for loading applications.
Are bolts included with the blade? Yes, complete bolt kit included for convenience.
